High Rate Series Battery

The CPSY® durable High Rate Series battery has a wide operating temperature ranging from -20℃ to 50℃. It has superior cycle performance, with fast charging and discharging function, and its charging efficiency is up to 100%. Besides, it has high output power and long service life.

Send Inquiry

Product Description

CPSY® High Rate Series battery

CPSY® durable High Rate Series battery is specially designed for high-rate discharge applications. By using strong grids and specially designed active material, the High Rate Series battery offers stable performance during high current discharge. It offers extremely high power output at 15 minutes of backup time with 5-12 years of design life. It is highly suited for high-rate UPS/EPS systems and power switchgear applications. CPSY® High Rate Series battery is made of 99.994% pure lead, A grade ABS fireproof/waterproof case, Good copper terminal, Sulfuric acid electrolyte.As the innovative leader in UPS and battery manufacturing, we are keeping quality and environmental protection first and foremost,CPSY Group has become a leader on environmental protection in China.

GWH series High Rate Series battery

Model: GWH1214-GWH12300

Battery capacity range: 14Ah-300Ah

CPSY® High Rate Series battery Parameter (Specification)

MODEL NO.	Voltage	Capacity	Dimension (mm)				Weight (kg)
MODEL NO.	(V)	(Ah)	Length	Width	Height	Total Height	(±3%)
GWH1214	12	14	152	99	96	102	3.8
GWH1220	12	20	181	77	167	167	6.0

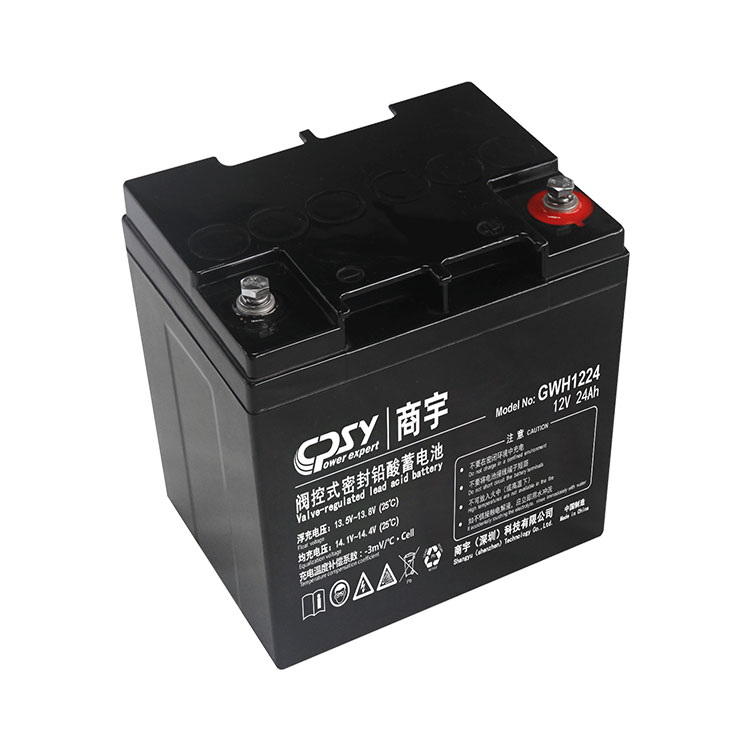

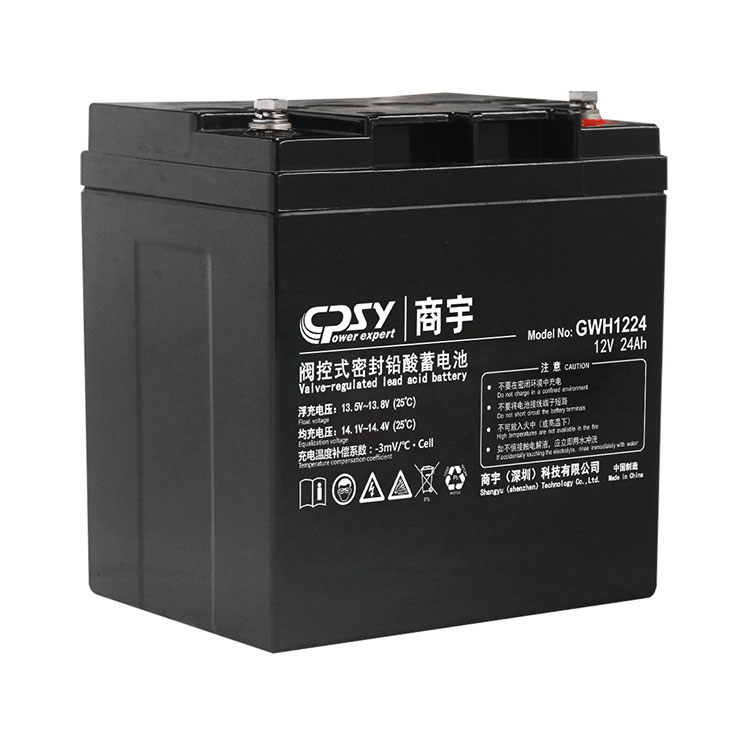

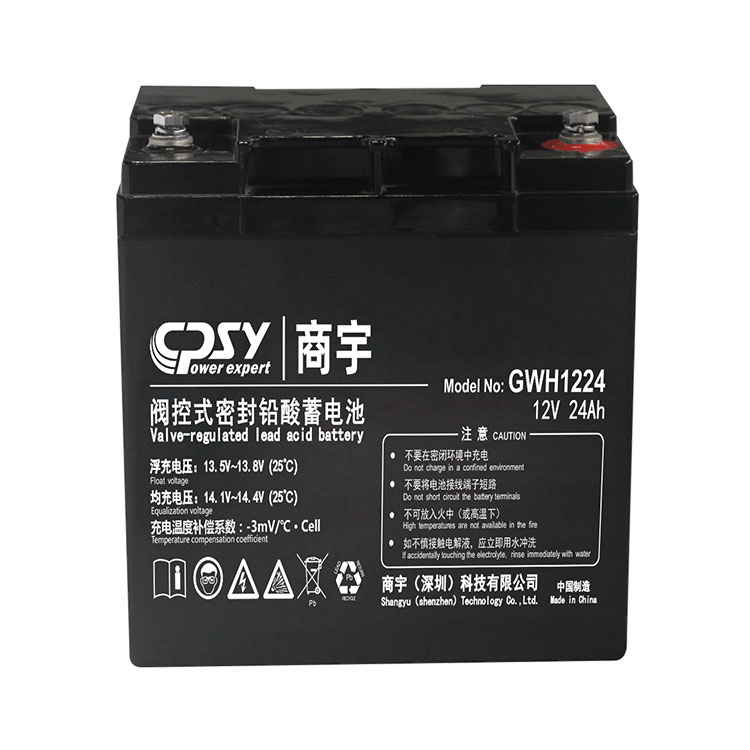

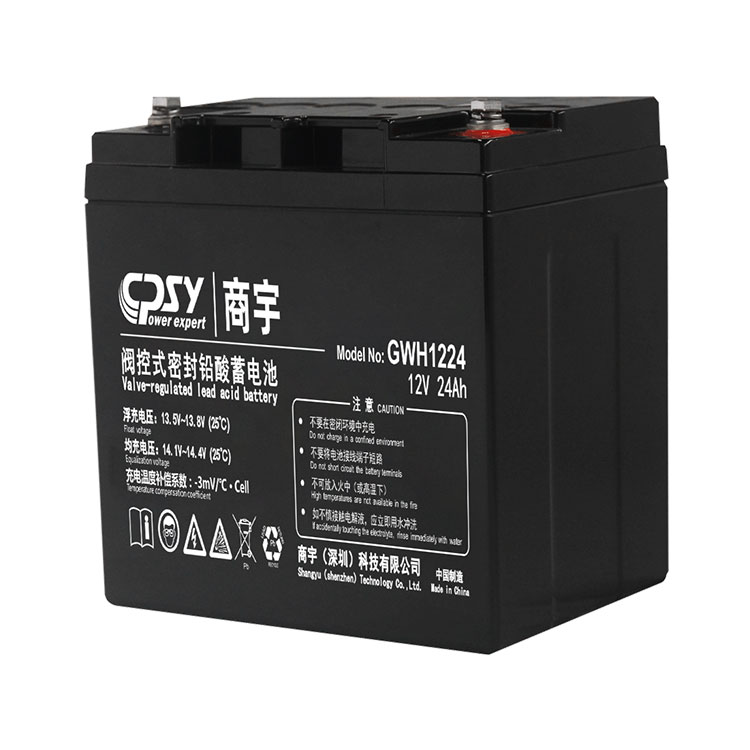

GWH1224	12	25	166	175	126	126	8.3
GWH1226	12	25	165	126	174	179	8.4
GWH1235	12	35	196	130	155	167	10.5
GWH1240	12	40	198	166	174	174	14.2
GWH1255	12	55	229	138	208	212	16.0
GWH1270	12	70	350	167	178	178	23.3
GWH1275	12	75	260	169	208	227	25.0
GWH1285	12	85	260	169	208	227	26.1
GWH1290	12	90	307	169	211	216	28.2

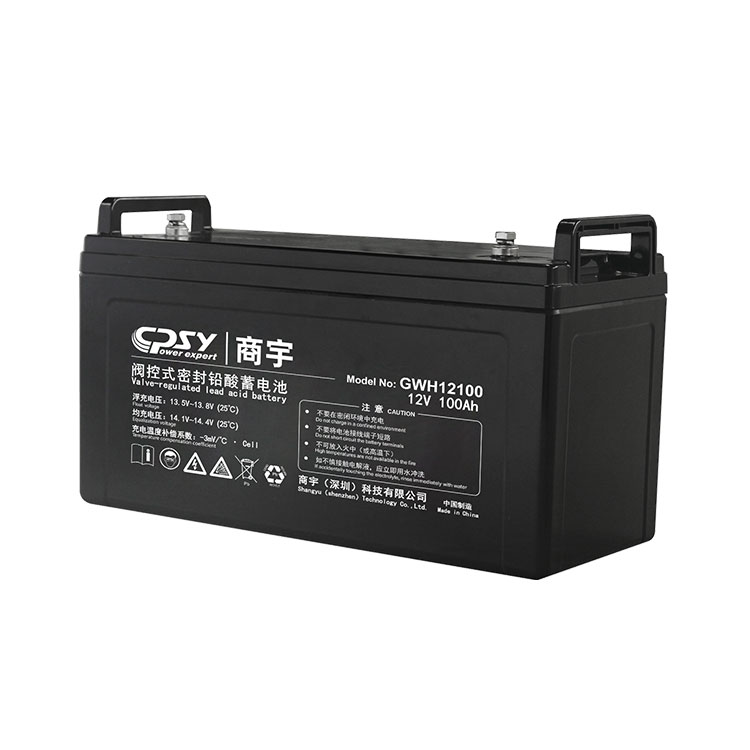

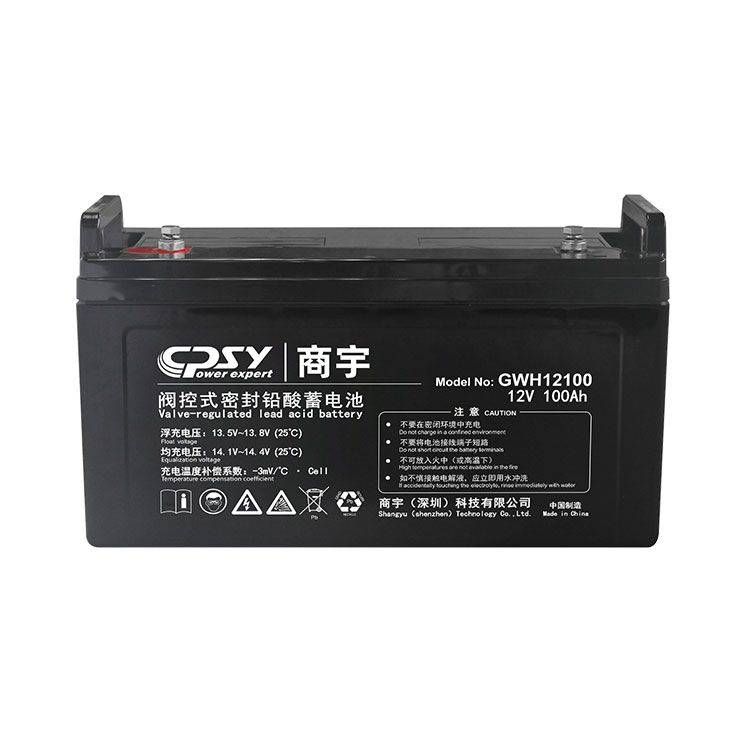

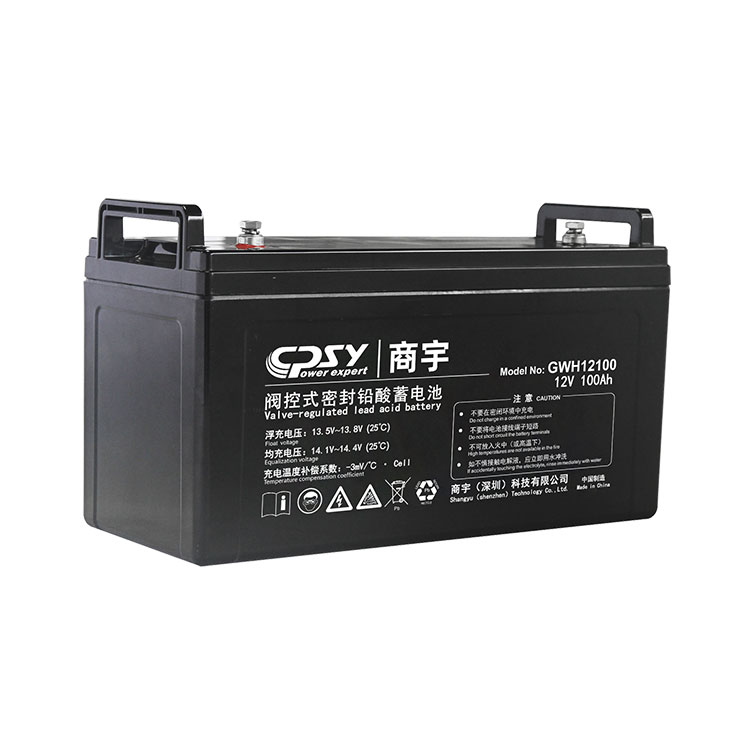

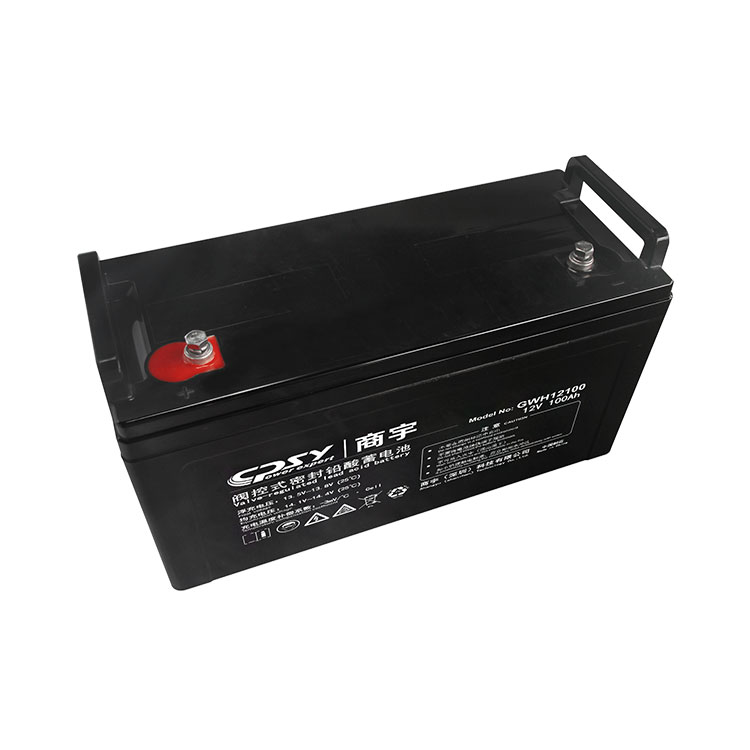

GWH12100	12	100	307	169	211	216	30.2
GWH12110	12	110	331	174	214	220	33.3
GWH12120	12	120	407	173	210	233	39.2
GWH12135	12	135	344	172	280	285	40.8
GWH12150	12	150	484	171	241	241	45.5
GWH12180	12	180	532	206	216	222	56.0
GWH12200	12	200	532	206	216	222	58.4
GWH12230	12	230	522	240	219	225	65.0
GWH12250	12	250	520	268	220	226	71.0
GWH12300	12	300	520	268	220	226	77.0
GWH6200	6	200	306	168	220	222	30
GWH6210	6	210	260	180	247	249	29.5
GWH6220	6	220	306	168	220	222	31.5
GWH6225	6	225	243	187	275	275	30.5
GWH6310	6	310	295	178	346	366	46
GWH6330	6	330	295	178	354	360	46.6
GWH6380	6	380	295	178	404	410	55.3
GWH6420	6	420	295	178	404	410	56.8

CPSY® High Rate Series battery Feature And Application

The typical lead-acid battery provides 200-300 charge/discharge cycles depending on the operating temperature and DOD. High Rate Series batteries can perform up to 400 charge/discharge cycles when operating at 68-77 degrees Fahrenheit at a 50% DOD with a 5-12 year life.

CPSY® High Rate Series battery Feature:

Specifically designed for high-rate UPS and critical power backup applications

Valve regulated, maintenance free spill proof construction

Precision plate pasting for higher consistency with 100% load testing to ensure uniform capacity

Lead-calcium alloy grids and the use of high purity lead account for superior shelf-life characteristics Patented dual-paste process for enhanced active material bonding and computer guided volumetric

electrolyte control for precision filling

Rugged impact resistant ABS case and cover flame retardant to UL94:V-0

High rate of charge and discharge

High Rate batteries vs Deep cycle batteries

CPSY® High Rate Series battery are very similar to high cycle batteries. They are designed with valve regulated lead-acid (VRLA) AGM technology and are used specifically to deliver high power pulses for short time periods. Discharging below 50% can risk shortening the lifespan of the battery. They supply more current and recharge faster than deep cycle batteries. Deep cycle batteries use VRLA AGM technology, however, they are designed with fewer and thicker lead plates, allowing a depth of discharge to 80% without causing damage. They provide a lower, steady power over an extended length of time.

CPSY® High Rate Series battery Is Especially Designed For High Rate Discharge Applications By Using Strong Grids And Specially Designed Active AGM Separator. HR Series Offers Stable Performance During High Current Discharge; HR Series Is Highly Suited For High Rate UPS/EPS Systems And Power Applications.

Characteristics of CPSY® High Rate Series battery:

Valve Sealed Design, No Free Electrolyte, Maintenance Free

Designed Floating Service Life: 5~12years @ 25ºC

Excellent deep discharge recovery capability

30% increase in power output at 15 minutes backup

Wide operating temperature range from -20ºC~55ºC

Safety valve installation for explosion-proof, Sealed, and maintenance

By using strong Lead Aluminum calcium Tin alloy high energy, prevent corrosion grids, high-purity lead, and patented Gel electrolyte

Extremely Low Self-Discharge Rate, Low Internal Resistance, and Long Time Storage Time
