12V Storage Battery

You can rest assured to buy 12V Storage Battery from our factory. CPSY® 12V Storage Battery Deep cycle series batteries are designed to have a large amount of stored current discharged between charging sessions,with very heavy nonporous battery plates to withstand repeated major discharging and charging cycles (deep cycle). The CPSY® deep cycle battery uses a different chemistry for the plates active paste material, and a slightly stronger electrolyte than normal battery electrolyte, thus the GW range features a 30% higher cycle life with 10 years of float life when compared to the standard Duration range.

Send Inquiry

Product Description

12V Storage Battery

You can rest assured to buy 12V Storage Battery from our factory. CPSY® 12V Storage Battery VRLA AGM Deep Cycle batteries deliver deep-cycle and cyclic discharging for a general range of stationary applications such as backup power, solar, and renewable energy storage. The batteries are maintenance-free, safe, and easy to use to reduce energy costs and grid dependence.

CPSY® 12V Storage Battery Parameter (Specification)

MODEL NO.	Voltage	Capacity	Dimension (mm)				Weight (kg)	Bolt
MODEL NO.	(V)	(Ah)	Length	Width	Height	Total Height	(±3%)	Bolt
GW64	6	4/20HR	70	47	101	107	0.7	F1/F2/CUT
GW64.5	6	4.5/20HR	70	47	101	107	0.75	F1/F2/CUT
GW65	6	5/20HR	70	47	101	107	0.8	F1/F2
GW67	6	7.0/20HR	151	34	95	101	1.15	F1/F2
GW610	6	10/20HR	151	50	94	100	1.6	F1/F2
GW612	6	12/20HR	151	50	94	100	1.75	F1/F2
GW124	12	4/20HR	90	70	101	107	1.35	F1/F2
GW124.5	12	4.5/20HR	90	70	101	107	1.48	F1/F2
GW125	12	5/20HR	90	70	101	107	1.58	F1/F2
GW126.5	12	6.5/20HR	151	65	94	100	1.9	F1/F2

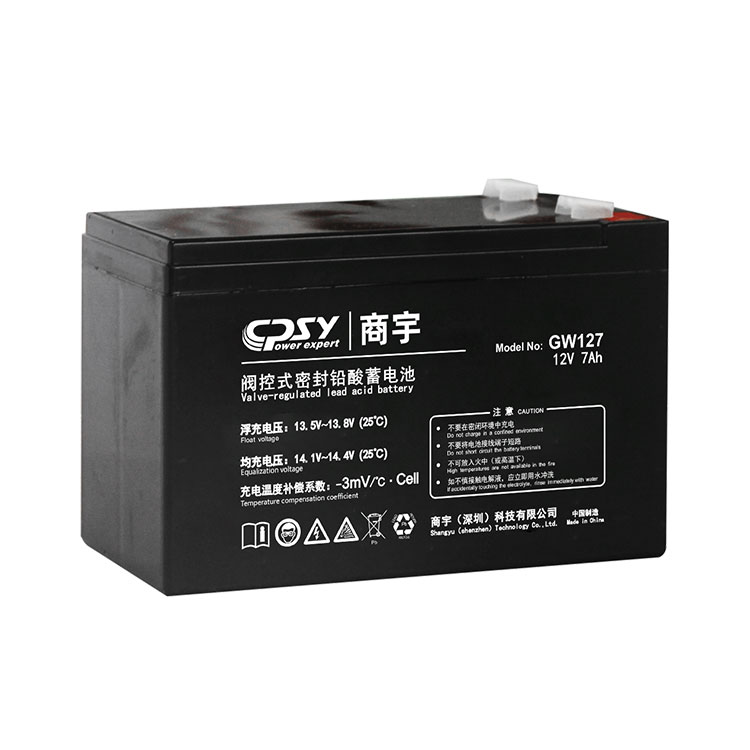

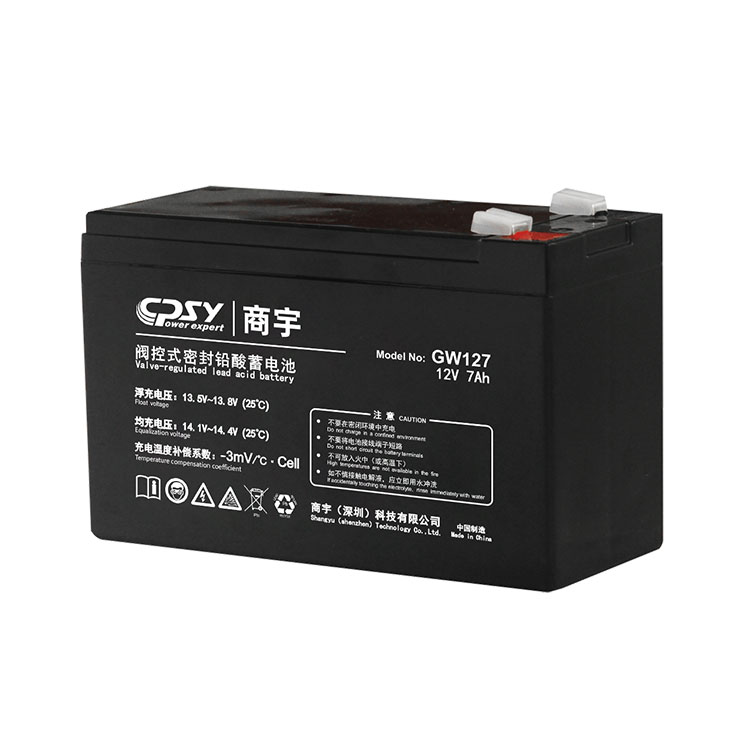

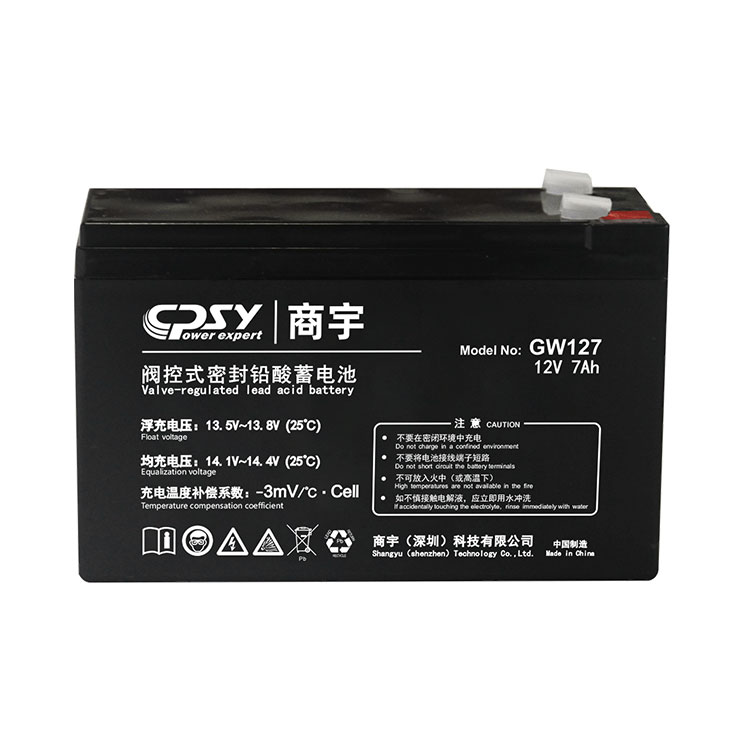

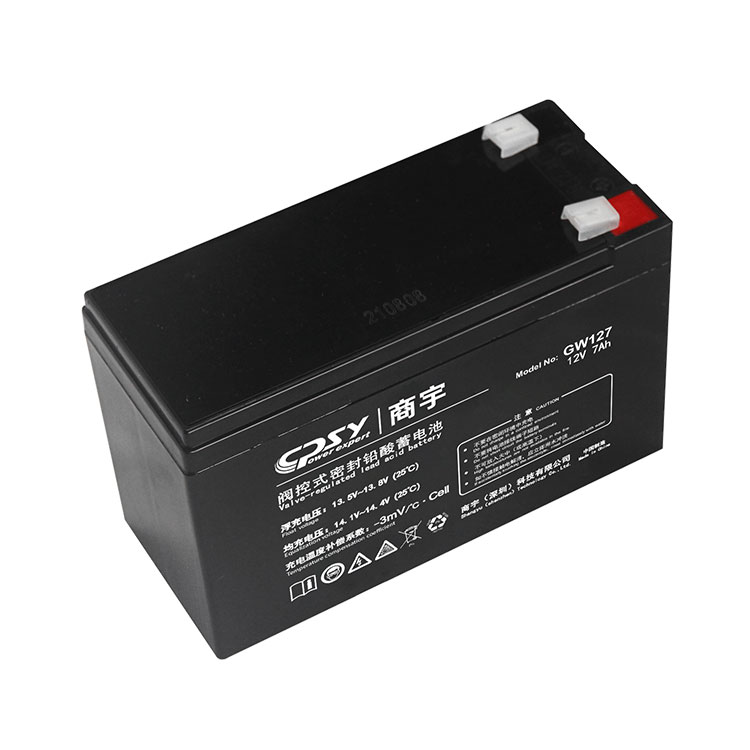

GW127	12	7.0/20HR	151	65	94	100	2.05	F1/F2
GW127.2	12	7.2/20HR	151	65	94	100	2.15	F1/F2
GW127.5	12	7.5/20HR	151	65	94	100	2.2	F1/F2
GW129	12	9/20HR	151	65	94	100	2.4	F1/F2
GW1210	12	10/20HR	152	99	96	102	3.2	F1/F2
GW1212	12	12/20HR	152	99	96	102	3.5	F1/F2
GW6180	6	180/10HR	260	180	247	251	27.5	M8×16
GW6180A	6	180/10HR	306	168	220	226	27	M8×16
GW6200	6	200/10HR	260	180	247	251	29.5	M8×16
GW6200A	6	200/10HR	323	178	224	229	29.5	M8×16
GW6200D	6	200/20HR	306	168	220	222	30	M8×16
GW6210	6	210/20HR	260	180	247	249	29.5	M8×16
GW6220	6	220/20HR	306	168	220	222	31.5	M8×16
GW6225	6	225/20HR	243	187	275	275	30.5	M8×16
GW6310	6	310/20HR	295	178	346	366	46	M8×16
GW6330	6	330/20HR	295	178	354	360	46.6	M8×16
GW6380	6	380/20HR	295	178	404	410	55.3	M8×16
GW6420	6	420/20HR	295	178	404	410	56.8	M8×16
GW1215	12	15/10HR	152	99	96	102	3.8	/
GW1217/18	12	17/18/10HR	181	77	167	167	5.2	M5×16
GW1220	12	20/10HR	181	77	167	167	6	M5×16
GW1224	12	24/10HR	166	126	174	174	7.7	M6×16
GW1226	12	26/10HR	166	175	126	126	8.3	M6×16
GW1233	12	33/10HR	196	130	155	167	10	M6×16
GW1238	12	38/10HR	198	166	172	172	12.3	M6×16
GW1245	12	45/10HR	198	166	174	174	13	M6×16
GW1250	12	50/10HR	229	138	208	212	15.5	M6×16
GW1255	12	55/10HR	229	138	208	212	16.2	M6×16
GW1265	12	65/10HR	350	167	178	178	20.5	M6×16
GW1270	12	70/10HR	350	167	178	178	21.5	M6×16
GW1275	12	75/10HR	260	169	211	215	22	M6×16
GW1285	12	85/10HR	260	169	211	215	23.5	M6×16
GW1285A	12	85/10HR	331	174	214	219	25	M6×16
GW1290	12	90/10HR	307	169	211	216	26.5	M6×16
GW12100	12	100/10HR	331	174	214	219	28	M8×16
GW12100A	12	100/10HR	331	174	214	219	29	M8×16
GW12120	12	120/10HR	407	173	210	233	33	M8×16
GW12120A	12	120/10HR	407	173	210	233	34	M8×16
GW12135	12	135/10HR	341	173	283	288	41	M8×16
GW12150A	12	150/10HR	484	171	241	241	41	M8×16
GW12150	12	150/10HR	484	171	241	241	44	M8×16
GW12160	12	160/10HR	532	206	216	222	48.5	M8×16
GW12180	12	180/10HR	532	206	216	222	53	M8×16
GW12200	12	200/10HR	522	240	219	225	56	M8×16
GW12200A	12	200/10HR	522	240	219	225	58.2	M8×16
GW12230	12	230/10HR	522	240	219	225	61	M8×16
GW12250	12	250/10HR	520	269	203	209	70	M8×16
GW12300	12	300/10HR	520	268	220	226	77	M8×16

CPSY® 12V Storage Battery Feature And Application

CPSY® 12V Storage Battery Details

CPSY® DEEP CYCLE VRLA AGM BATTERY

Voltage: 12V

Capacity: upto 12V300Ah

Designed floating service life: 8-12 years @ 25C/77F.

FEATURES AND BENEFITS

30% more cyclic life through innovation at the PAM additives

Long life expectancy of 10 years in floating condition

Thick flat plate with high Tin low Calcium alloy

Wide operating temperature range from -20C to 50C

3% Low self-discharge rate

Very good deep cycle performance: up to 500 cycles@80%DOD

Excellent deep discharge recovery capability

CHARGING VOLTAGE AND SETTINGS

Constant voltage charging is recommended

Recommended float charge voltage: 2.27V/cell@20~25°C

Float voltage temperature compensation:-3mV/C/celI

Float voltage range: 2.27 to 2.30 V/cell @ 20~25C

Cyclic application charge voltage : 2.40 to 2.47 V/cell @20-~25°C

Max. charge current allowable :0.25C

BMS of LiFePO4 Battery

CONSTRUCTION

Positive plate - Thick high Sn low Ca grid with special paste

Negative plate - Balanced Pb-Ca grid for improved recombination efficiency

Separator - Advanced AGM separator for high pressure cell design

Electrolyte - Dilute high purity sulfuric acid

Battery container and cover - Fire resistance ABS,water proof

Pillar seal- Two layers epoxy resin seal

Relief valve - Complete with integrated flame arrestor

Application

Electric Powered Vehicles

Golf Cars and Buggies

Wheel Chairs

Electric Powered Toys

Medical Equipments

Solar and Wind

Power Tools

Control System

UPS systems

Emergency systems

COMPLIED STANDARDS

IEC 61427

IEC60896-21/22

BS6290 part 4

GB/T 22473

ISO9001/14001/18001

Eurobat guide, long life

IATA and IMDG

MSDS

The INSIDE Story

CPSY has been manufacturing lead acid batteries since 2019's, and through years of development, advanced research, and technology transfer, today, we are proud to have a durable, long life, highly reliable, and electrical efficient VRLA battery, such as our AGM, GEL, and the Hybrid Gel that cater to our customers need, and their environment.

Valve (One way valve)

The valve is comprised of a one-way valve made of material such as neoprene. When gas is generated in the battery under extreme overcharge condition due to erroneous charging, charger malfunctions or other abnormalities, the vent valve opens to release excessive pressure in the battery and maintain the gas pressure within specific range (7.1 to 43.6 kPa.). During ordinary use of the battery, the vent valve is closed to shut out outside air and prevent oxygen in the air from reacting with active material in the negative electrodes.

Negative Plate

It is a Lead-tin-calcium alloy grid with a thickness of at least 2.3mm, and filled with spongy lead as its active materials that ensure optimum discharge performance, and long service life.

AGM Separators

Absorbent Glass Mat (AGM) separator that is used to retain the acid electrolyte or the Gel acid catalyse, and it provides longevity in the battery life through minimal ions loses.

Positive and Negative Electrodes Terminals

Positive and negative electrodes terminals may be faston tab type, bolt fastening type, threaded post type, or lead wire type, depending on the type of the battery. Sealing of the terminal is achieved by a structure which secures long adhesive-embedded paths and by the adoption of strong epoxy adhesives.

Battery Case Materials

Material of CHLORIDE Powersafe AGM Battery Series case is ABS resins. UL94 V0 frame retardant aterial case is optional.

Positive Plate

Radial design lead-tin-calcium alloy grid with a thickness of 3.2mm to 3.6mm, and it's filled with porous lead dioxide as its active materials that able to deliver the optimum discharge performance.
