Room Precision Cooling Air Conditioner

CPSY® Single Phase Low frequency ups

As the professional manufacturer, this CPSY® AM series Room Precision Cooling Air Conditioner is the latest invention of high-quality ups products, which comply with EU standard and comes with a 2-year warranty. The CPSY® AM series Room Precision Cooling Air Conditioner is made of Hermetic scroll compressor+indoor blower+Blower motor+Condensing fan+Humidifier+Electric heaters+computer controller+Communicator+Thermal Expansion Valve+Glass+filter drier+contactor+Pressure Sensor+Isolation switch+High and low voltage switch+air differential switch+Fan speed controller+Phase sequence controller+Evaporator+condenser+air filter, which has been designed to meet most demanding power requirements, being easy to install and maintain. It combines latest high energy efficiency technology and high power density technology,achieving small size, stable performance and price competitive for UPS products.

CPSY® is a large-scale AM series Room Precision Cooling Air Conditioner manufacturer and supplier in China. We have been specialized in air conditioner for many years. Our products have a good price advantage and cover most of the European and American markets. We look forward to becoming your long-term partner in China.

CPSY® AM series Room Precision Cooling Air Conditioner Parameter (Specification)

CPSY® AM series Room Precision Cooling Air Conditioner Feature And Application

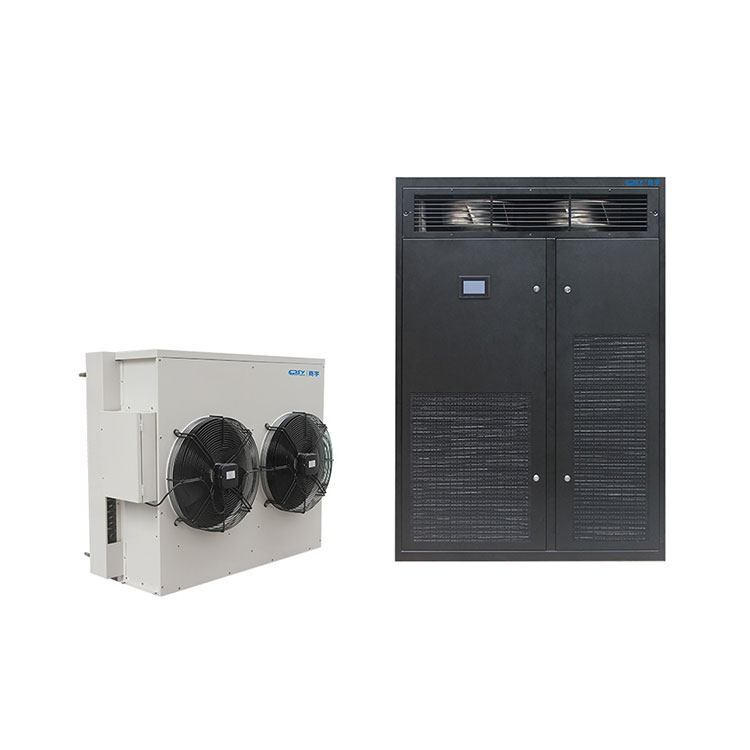

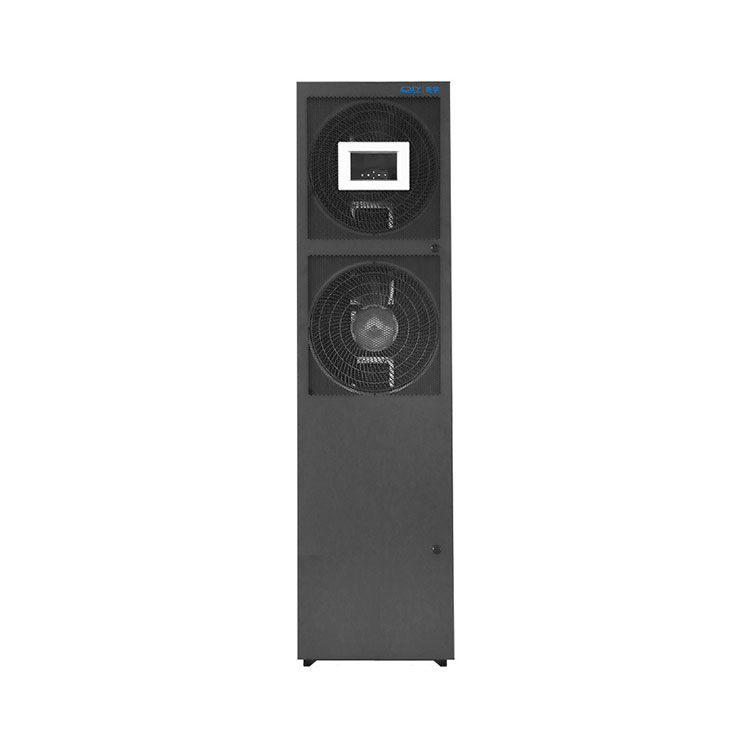

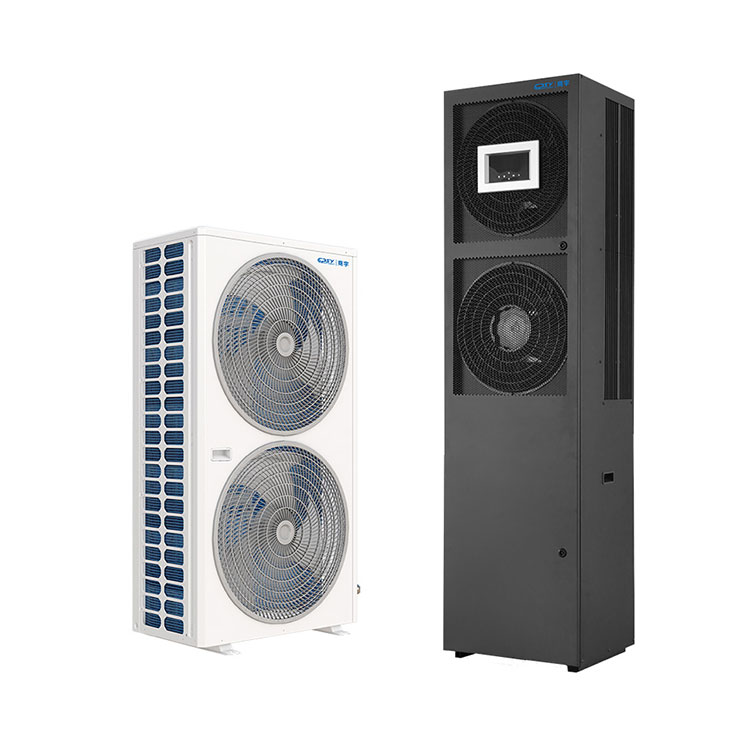

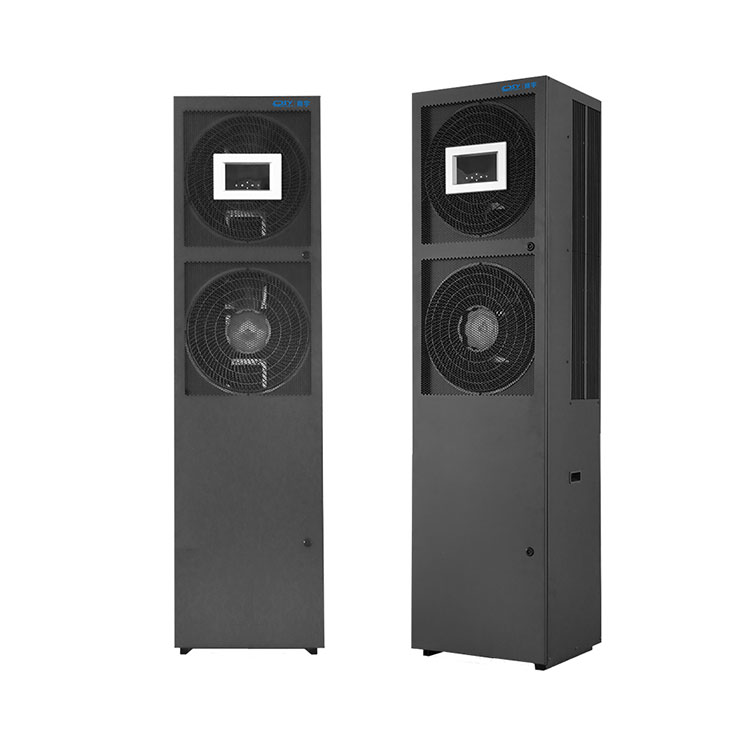

CPSY® AM series Room Precision Cooling Air Conditioner

Model No.:AM8UC/AM13UC/AM8UH/AM13UH

Room Precision Cooling range: 8KW~13KW

Features:

--4.3-inch button control screen;

--Power-off memory, self-starting when power is received;

--Group control network (maximum 32 units);

--Intelligent protection: power supply phase loss, overvoltage and undervoltage, reverse phase protection alarm, unit water leakage Protection, compressor high and low pressure protection alarm, computer room environment high/low temperature alarm;

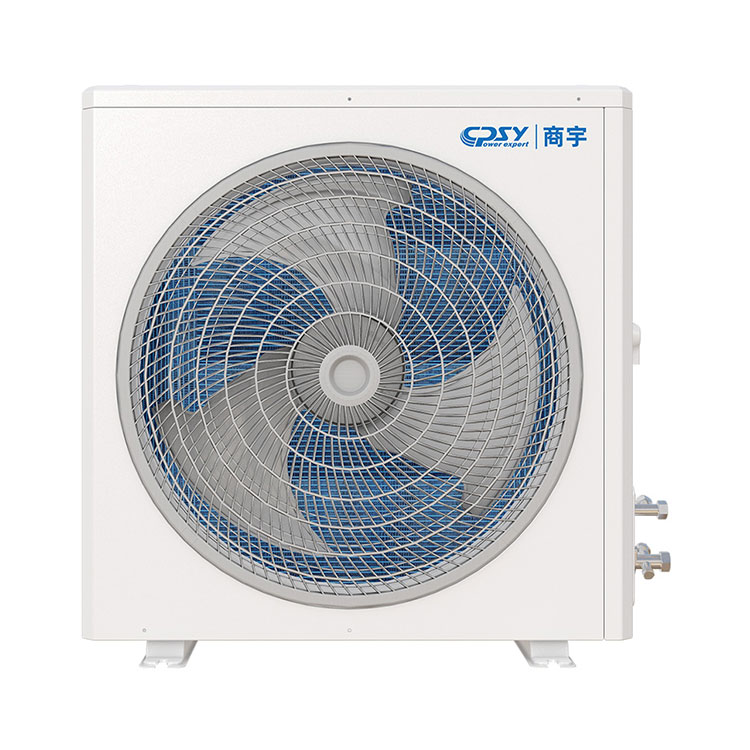

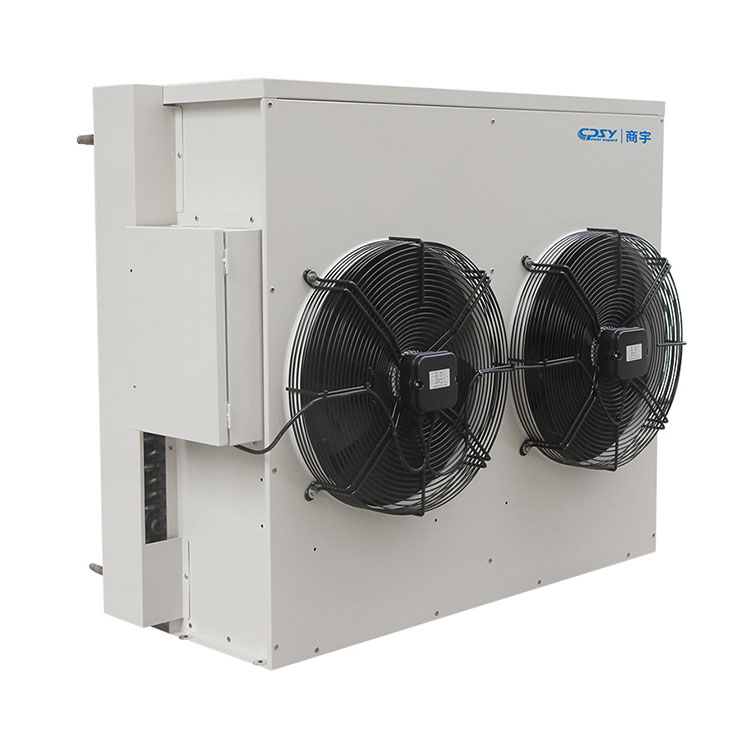

--Monitor and display the operating status of the outdoor unit: condensing pressure, fan speed, power signal, speed regulation signal, etc.;

--Store 500 historical records

-All units are equipped with constant temperature and humidity function (standard heater and humidifier)

-All unit single systems

--Full Chinese large screen display, with multi-level password protection, expert fault diagnosis function

--Ultra-wide input voltage design, equipped with phase loss protection, power-on self-start function

--Multiple air supply methods: up air supply, down air supply, up front air supply, down front air supply

--Abundant options: EC fan, electronic expansion valve, high-efficiency filter, special humidifier, etc.

--The unit has a compact structure and a small footprint, 100% full front maintenance

--The energy efficiency ratio of the whole machine is as high as 2.9 or more

--Washable synthetic fiber filter with G4 filtration efficiency

--The unit control system has three levels of password protection, comprehensive protection and alarm

Applications:

Small and medium communication room

small and medium IT room

Power distribution rooms in railway, electric power, banking and other industries

electrical control room

operating room

other small equipment

CPSY® AM series Room Precision Cooling Air Conditioner Details

When compare with peers, CPSY® AM series Room Precision Cooling Air Conditioner advantages as below:

--Green refrigeration

Adopt environmentally friendly refrigerant R410A, reduce carbon dioxide emissions, and be green and environmentally friendly.

--intelligent control

1. The air conditioner comes with RS485 communication interface;

2. The group control network can realize the network operation of 32 machines;

3. Flexible main and standby machine switching function, automatic switching and rotation functions can be realized after the unit is networked.

-- Precise control

1. Intelligent and stable constant temperature and humidity function;

2. Temperature adjustment range: + 16°C~+40°C, temperature adjustment accuracy: ±1°C;

3. Humidity adjustment range: 20%~95%RH, humidity adjustment accuracy: soil 5%RH

4. Estimate the trend, self-diagnose and adjust to avoid frequent temperature fluctuations or even shutdown.

--Incoming call starts automatically

The air conditioner has the function of starting automatically

--Innovative airflow design

1. Super wide-angle large-area air supply, innovative airflow design, reduce overheating in dead corners of the computer room, and avoid local overheating;

2. Adopt return air heat exchange technology + large area "U" type evaporator, small heat exchange wind resistance and high efficiency.

--Ultra high energy efficiency

1. The sensible heat ratio of the whole system under standard conditions is as high as 92%, and the energy efficiency of the system is as high as 3.6, leading the industry level;

2. The design of large air volume and small melting difference is suitable for the heat dissipation characteristics of the main equipment in the computer room, and provides a continuous and stable temperature/humidity environment for the main equipment.

--Intelligent protection

Ensure that the unit can work effectively for a long time

1. Motor overload protection 2. High and low voltage protection 3. Compressor low voltage protection 4. High/low temperature alarm 5. Power failure memory 6. Compressor high voltage protection 7. Phase loss and wrong phase protection 8. Phase sequence fault tolerance

--High stability

1. Full Chinese 4.3-inch touch screen, with multi-level password protection, fault diagnosis and other functions;

2. According to the 24h*365 day continuous operation long life design, high efficiency and stability, less maintenance;

3. High intelligence, high energy saving, high efficiency, long life, small vibration, low noise, and continuous and uninterrupted work;

4. Strong power grid adaptability, ultra-wide input voltage design, three-phase power unit operating voltage fluctuation range of 380Vac ± 20%, and has a phase loss protection function.

Famous high-efficiency compressor with outstanding performance

Adopt well-known brand DANFOSS /Copland rotor compressor, anti-hydraulic, large air castle, simple and compact structure, light weight, small unit size, small footprint, small starting current, continuous and stable compression operation process, low noise, long life and other advantages.

High-quality electronic expansion valve with precise control

The opening can be adjusted steplessly from 10% to 100%, and the compressor can be used to achieve precise cooling. It has the functions of fast response, wide adjustment range, energy saving and quietness, etc. The valve is reversible and can realize automatic control of cooling and heating.

Password setting, precise operation

It adopts full Chinese large-screen display, which integrates multiple functions and easy-to-operate humanized interface; advanced intelligent control technology, real-time control of ambient temperature, accurate control and more energy-saving; intelligent centralized control technology can effectively prevent misoperation.

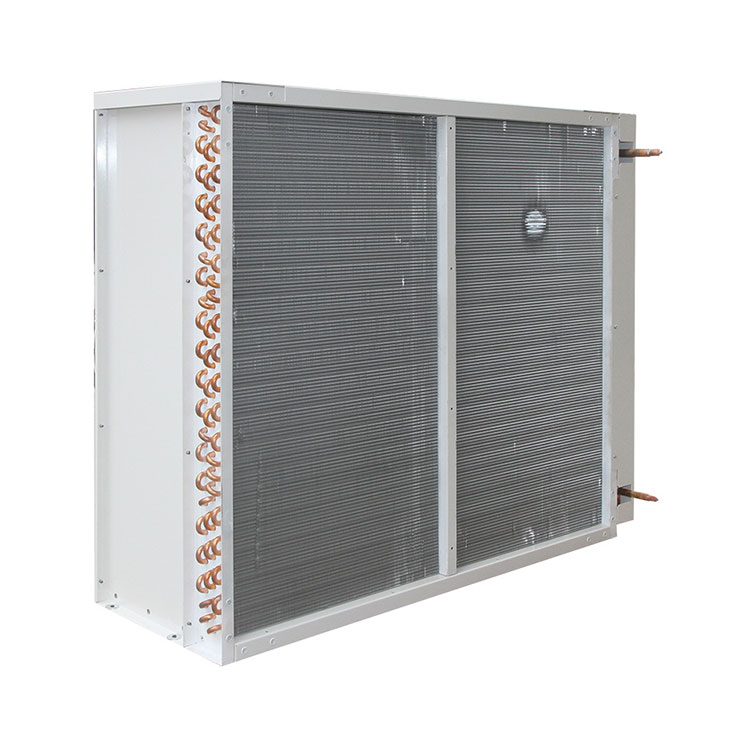

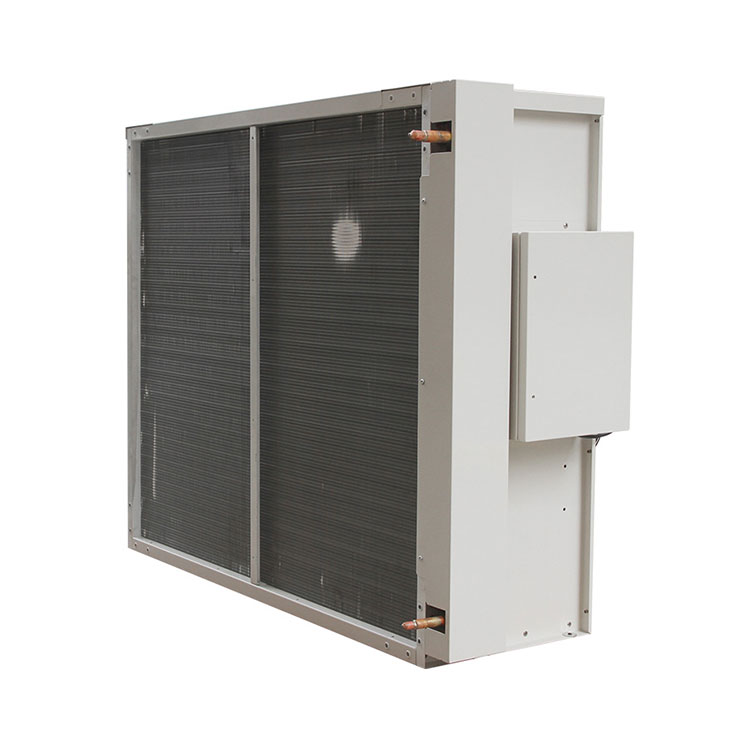

High-efficiency copper tube heat exchanger, durable and energy-saving

The use of high-efficiency copper tube heat exchanger, the perfect combination of blue hydrophilic film aluminum fan low-pressure loss fins and internal thread copper tube, and the innovative use of CFD-assisted optimization design greatly improves the heat exchange efficiency of the heat exchanger, which is durable and more energy-saving. The internal threaded copper tube is adopted, and its inner surface is designed with grooves, so that the contact area with the refrigerant is larger, the heat exchange is more sufficient, and the heat exchange effect is better.
