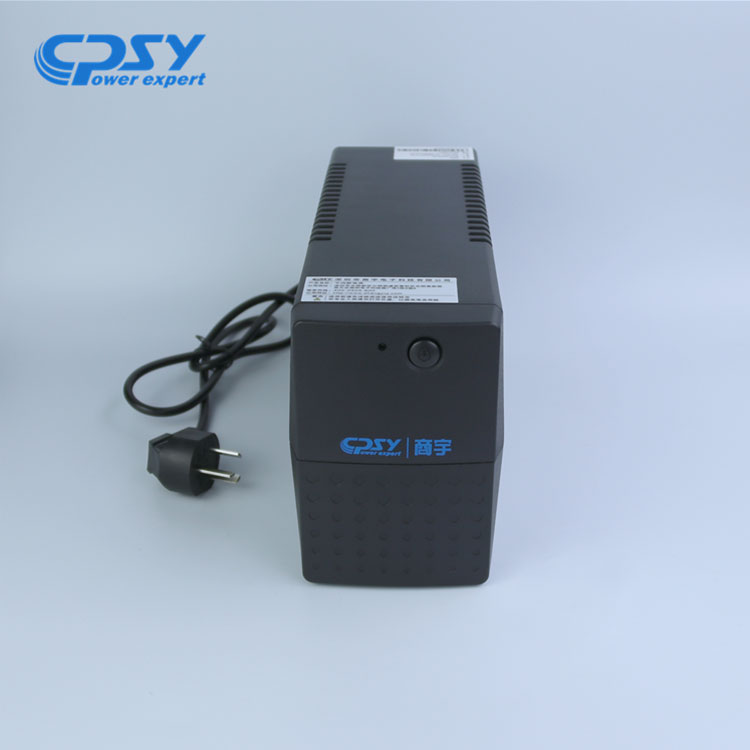

12v Mini UPS

The CPSY® 12v mini ups is made of PCBA+ VRLA Battery+Plastic case with important machines are SMT, ICT, Automatic Assembly Lines, etc., we use epoxy copper laminate, good electrical conductivity, stable quality PCB board, and dust-proof and waterproof IP21,anti-oxidation plastic body case, what's more, VRLA Battery produce with 99.994% pure lead, A grade ABS fireproof/waterproof case, Good copper terminal, Sulfuric acid electrolyte.

Some features of CPSY® 12v mini ups

* Model No.: S500

*Capacity: 500VA / 300W

*Phase: Single phase with ground

*Power factor: 0.6

*Input voltage range: 220/230/240VAC

*Output voltage: 220VAC±10%

*Transfer Time: Typical 2-8 ms

*Indicator: LED display

* Socket : European standard socket and plug or Universal outlet(optional)

*Battery type & number : AGM battery 12V / 7Ah x 1pc

*Product size: 284 x 100 x 140mm

*N.W.: 4.5kgs/color box

*G.W.:18.0kgs/ctn(4pcs)

CPSY® 12v mini ups Parameter (Specification)

CPSY® 12v mini ups Feature And Application

Features:

● Excellent microprocessor control optimizes reliability;

● Built super smart charger,shorten charging time;

● Boost and buck AVR for voltage stabilization;

● Simulated sine wave;

● Auto restart while AC is recovering;

● Built-in self-diagnostic function;Power-on self test;

● Off mode charging function;

● Compatible with generator set(optional);

● Optional RS232/USB communication port and RJ11/RJ45 protection.

Application:

●Internal,modems & wireless router

●Photos, music & video libraries

●Computer & peripherals

●Game consoles & TVs

●Home Office

CPSY® 12v mini ups Details

When compare with peers, 12v mini ups advantages as below:

●Automatic charging function

●Automatic self detection function when ups start

●Automatic voltage regulation function

●Auto re-starts when AC recovers

●Approve European CE and ROHS certification system

●Battery low voltage protection

●Battery auto charging function when UPS off

●customized service, accept ODM & OEM order.

●Short circuit protection

●Over current protection

●Silence function

●Overload protection, 120% load work for long time

●Optional anti-lighting function,More Safety.

●Optional Plastic trype/Metal type/long-run type/charger type 12v mini ups

●Smart charging, shorten 50% charging time when charge the battery.

Backup time

Trouble Shooting

Use the table below to solve minor problems.

Important Safety Warning for 12v mini ups (SAVE THESE INSTRUCTIONS)

CAUTION! To prevent the risk of fire or electric shock, install in a temperature and humidity controlled indoor area free of conductive contaminants. (See the specifications for the acceptable temperature and humidity range.)

CAUTION! To reduce the risk of overheating the UPS, do not cover the Ups' cooling vents and avoid exposing the unit to direct sunlight or installing the unit near heat emitting appliances such as space heaters or furnaces.

CAUTION! Do not attach non-computer-related items, such as medical equipment,life-support equipment, microwave ovens, or vacuum cleaners to UPS.

CAUTION! Do not plug the Ups input into its own output.

CAUTION! Do not allow liquids or any foreign object to enter the UPS. Do not place beverages or any other liquid-containing vessels on or near the unit.

CAUTION! In the event of an emergency, press the OFF button and disconnect the power cord from the AC power supply to properly disable the UPS.

CAUTION! Do not attach a power strip or surge suppressor to the UPS.

CAUTION! If the UPS is with metal chassis, for safety purpose, grounding is a must during UPS installation in order to reduce leakage current below 3.5mA.

Attention! hazardous through electric shock. Also with disconnection of this unit from the mains, hazardous voltage still may be accessible through supply from battery. The battery supply should be therefore disconnected in the plus and minus pole at the quick connectors of the battery when maintenance or service work inside the UPS is necessary.

CAUTION! Servicing of batteries should be performed or supervised by personnel knowledgeable of batteries and the required precautions.Keep unauthorized personnel away from batteries.

CAUTION! When replacing the batteries, use the same number and type of batteries.

CAUTION! Internal battery voltage is 12VDC, Sealed, lead-acid, 6-cell battery.

CAUTION! Do not dispose of batteries in a fire. The battery may explode. Do not open or mutilate the battery or batteries. Released electrolyte is harmful to the skin and eyes.

CAUTION! Unplug the Ups prior to cleaning and do not use liquid or spray detergent.

CAUTION! A battery can present a risk of electric shock and high short circuit current. The following precaution should be observed before replacing batteries:

1) Remove watches, rings, or other metal objects.

2) Use tools with insulated handles.

3) Wear rubber gloves and boots.

4) Do not lay tools or metal parts on top of batteries.

5) Disconnect charging source prior to connecting or disconnecting batteries terminal.

Package detail
