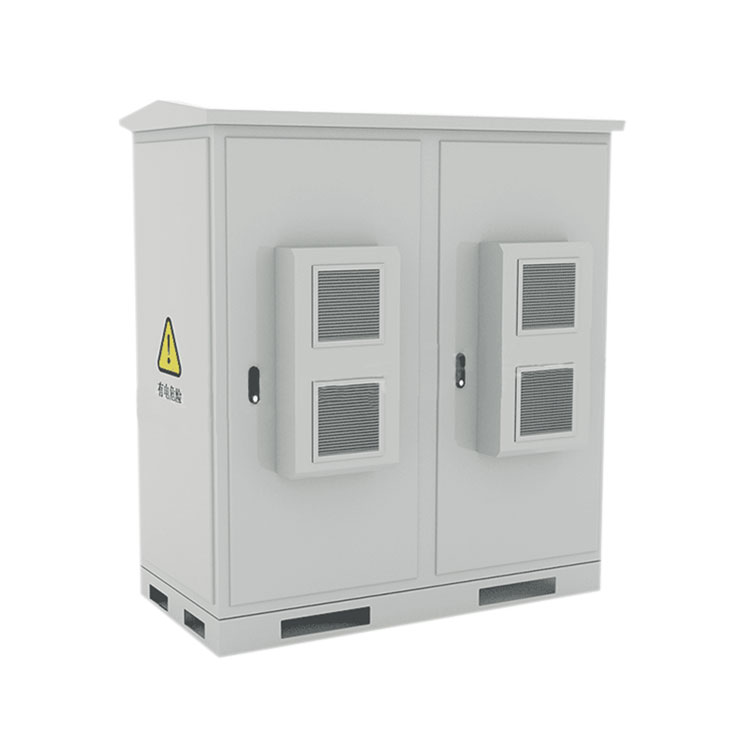

CPSY® Outdoor Equipment Cabinet

CPSY® outdoor equipment cabinets protect your outdoor IT security in harsh environments. As a Chinese UPS outdoor equipment cabinet manufacturer, CPSY® has 3 types of this product to choose from to meet your needs in shape, size, color, and shell surface paint treatment and cost specific needs. In addition, CPSY® outdoor equipment cabinets offer cooling solutions such as chassis air conditioners, heat exchangers, TEC, cooling fans and power supply options to keep the temperature within the cabinet stable, thereby increasing the lifespan and stability of the equipment. Air-conditioned CPSY® outdoor equipment cabinets are designed to house a variety of telecommunications equipment with 19-inch or 23-inch rack rails, which provide protection from vandalism, dust, rain, snow and dripping water.

CPSY® Outdoor Equipment Cabinet Feature And Application

Certification

Telcordia GR-487 Specifications

UL certification

Meets NEMA 4X (sealed cabinet) standards

3R (Fume Hood) Standard

Features:

Customizable sizes 16U, 18U, 22U, 24U, 27U, 32U, 42U, etc.

Adjustable rack 19" or 23" rack equipment installation space, flexible and economical.

Optional raw materials: cold-rolled steel, 201/304/316 stainless steel, aluminum and galvanized steel, etc. to meet your various requirements and budgets.

Customizable protection levels: IP54, IP55, IP65 or NEMA 4, NEMA 4X

Constructed from durable welded aluminum, galvanized steel, and powder-coated construction, these premium materials protect equipment from harsh weather conditions such as rain, wind, and sandstorms.

Weather resistance is mainly ensured by alloy as well as polyester powder coating with UV protection, and the stainless steel frame provides additional protection.

Housing and thermal system feature powder-coated surfaces to withstand harsh environments and provide superior environmental protection

600mm wide x 1000mm deep welded construction for strength and durability

Full size 19" unit front door, level 2 lock (regular and master) with latch with padlockable security

Rear access panel facilitates equipment maintenance and installation

Switch mode power supply available on request with ground rods conveniently located at the front and rear

Includes 150mm high base for floor or floor mounting

Optional battery box, electrical load panel and side spool cabinet

With strict mechanical design, clear pipelines and ventilation systems, CPSY meets the requirements of customers in high-temperature places and extremely low-temperature areas.

25mm rack frame perforations along with internal fittings create a highly flexible cabinet.

Using our fans, cooling units, heat exchangers and heating units will create a favorable climate and stable temperature inside the cabinet.

Solution design takes less than 5 minutes to complete, and supports operator additions and site modifications

The product line offers design flexibility that allows for rapid customization of size and functionality.

Freestanding outdoor cabinets are a suitable solution for projects that have high requirements for a stable in-rack climate.

Since the cabinet's compact structure prevents removal of individual components from the outside, the double-wall box design protects installed components from all-weather impact and damage.

For harsh climate conditions, side panel models can be modified to allow the installation of fans or air conditioning units.

Highly stable and rigid structure, steel thickness: front door: 2.0mm, roof: 2.5mm aluminum, other parts: 1.5mm.

Optional composite mounting platform reduces cost and deployment time compared to traditional concrete pad installation

Extensive thermal management options meet the most demanding cooling needs, optimizing thermal performance and reducing energy costs

Offers a wide range of configuration options for maximum flexibility, including optional integrated power plant, protection, site monitoring and fiber patch panels

Available in a variety of accessories including bases, top-hat cable entry compartments, laptop tray kits and sliding rack trays

Includes bolt-mounted lifting lugs for placement by crane or other lifting equipment

Application:

telecommunications

transportation

Wireless broadband

optical fiber

Return trip

base station

public safety

Utilities

army

Wifi

LTE/4G/5G

public construction

Safety cabinet

controls and instrumentation

substation

wind farm

Solar farms, etc.

CPSY® Outdoor Equipment Cabinet Details

When compare with peers, CPSY® Outdoor Equipment Cabinet advantages as below:

The main advantage:

Compact design, simple, useful and full-featured structure

Easy to deploy: low investment cost.

Welded stainless steel housing frame with 25 mm perforations (2 mm material thickness)

All removable parts are made of aluminum (doors, rear/side panels, roof)

Polyester powder coating with UV protection

Easy to transport: integrated design, rack-mounted.

Ready for crane transport

High earthquake resistance and high stability

Double wall outdoor cabinet, fully installed

Removable rear panel, removable roof, natural ventilation

Convenient operation and maintenance: high reliability of power supply, long backup time, maintenance-free, and integrated monitoring.

PUR non-porous gasket for extreme temperature ranges

IP65 dustproof, waterproof and vandal proof, highest protection against corrosion

IK10 mechanical protection to prevent serious damage

Outdoor installation: IP 55 protection design, waterproof, dustproof, heat-resistant (polystyrene material insulation), anti-theft, can be used for base stations in remote areas.

The front door comes with a multi-point locking system, combination key, and doorstop. Easily configured for right or left door installation

Provide flexible size selection and provide an ideal box solution for the entire base station.

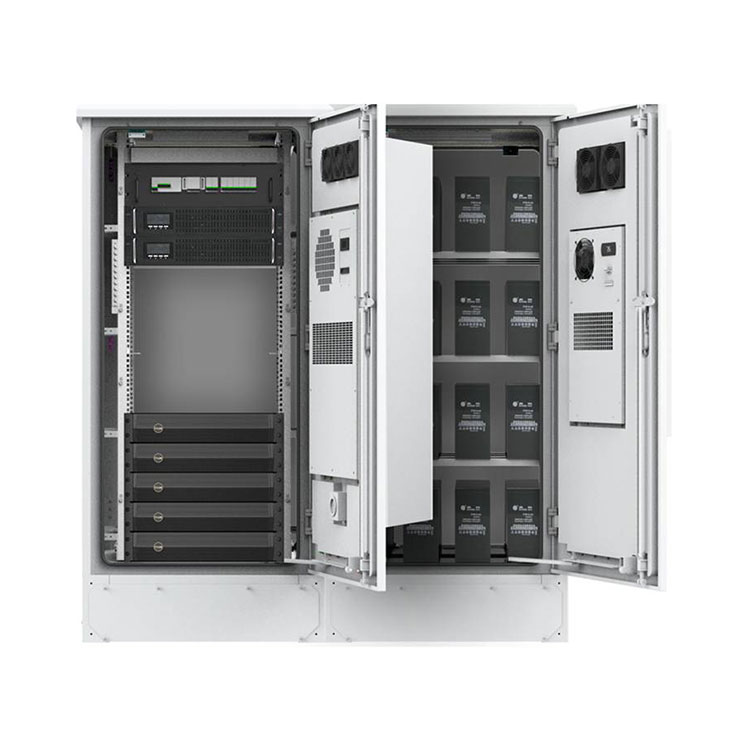

The cabinet system supports network equipment, backup batteries and power systems under various harsh environmental conditions.

Support customization: lithium battery/lead-acid battery optional, 1-10KVA UPS optional, support different configurations.

Level 2 (Normal and Master) security key mechanisms complete the protection of installed equipment.

RFQ

Q: What is the purpose of outdoor equipment cabinets?

A: The products are fully enclosed cabinets that help protect cables and other equipment from potentially damaging environments such as dust, rain, ice, and external heat.

Q: What information do you need to know about outdoor equipment cabinets?

A: The products are specially designed for the transportation and telecommunications industries. They can be deployed in harsh outdoor environments such as rural areas, communities, streets or residences. Constant temperature and humidity can be customized according to customer needs.

Q: Why do you need to buy an outdoor equipment cabinet?

A: The products are the ideal way to store and protect equipment at remote sites and come in different styles and sizes with the same general purpose: to protect valuable equipment from the elements and damage.

Q: Why choose CPSY outdoor equipment cabinet?

A: As China's leading UPS manufacturer, CPSY has been providing UPS for more than 10 years and has its own UPS factory and sheet metal factory, which can continuously develop innovative series of outdoor equipment cabinet products suitable for various applications.
